5962-8688202XA是Precision 10V Reference

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> 5962-8688202XA

5962-8688202XA技术文档下载：

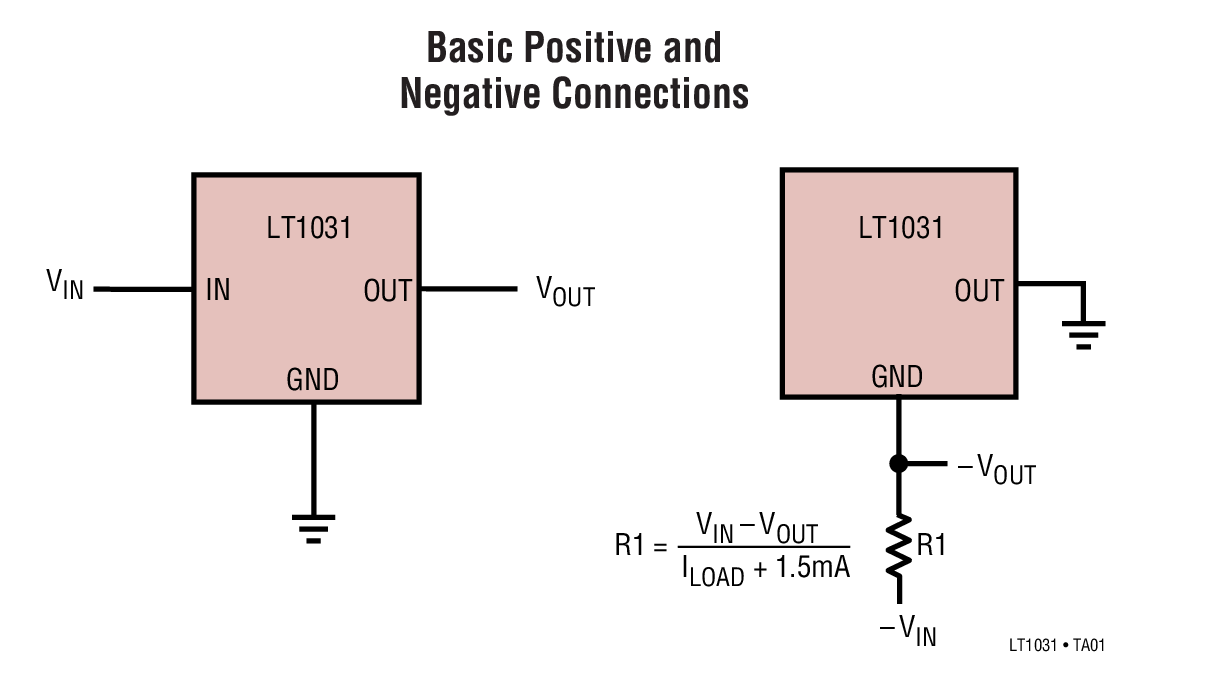

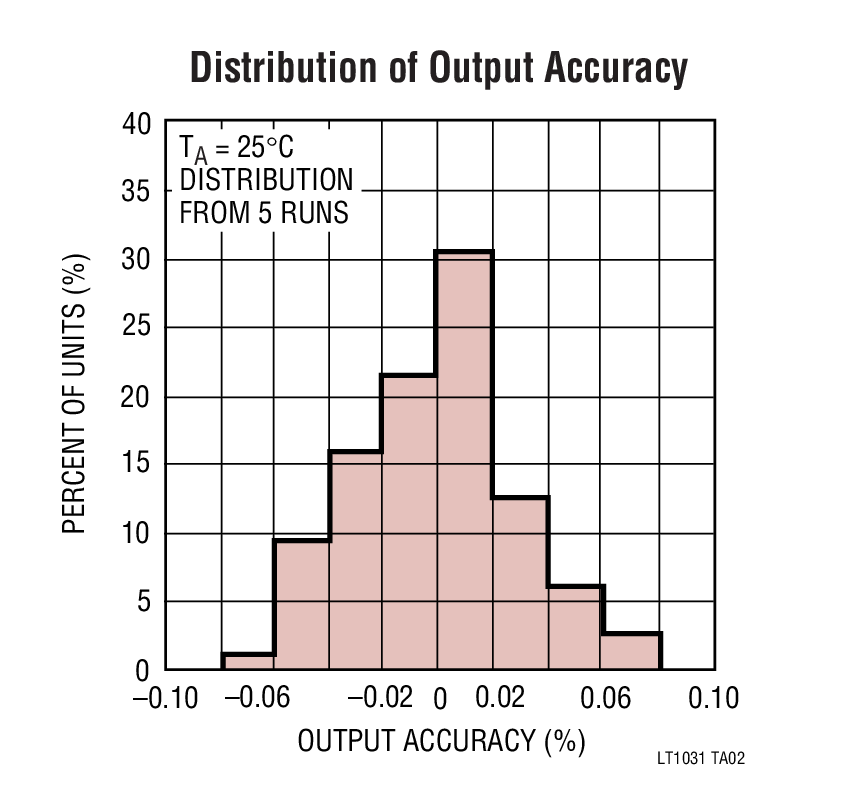

5962-8688202XA - 典型应用图例：

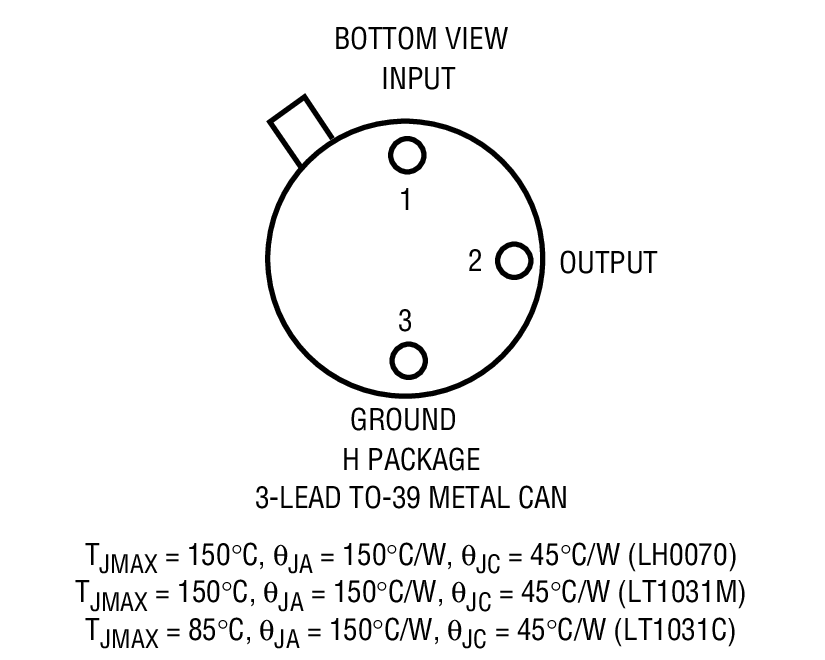

5962-8688202XA - 封装图解：

5962-8688202XA - 5962-8688202XA是Precision 10V Reference

5962-8688202XA是Linear公司的一款军用密封产品 (M)产品，5962-8688202XA是Precision 10V Reference，本站介绍了5962-8688202XA的封装应用图解、特点和优点、功能等，并给出了与5962-8688202XA相关的凌力尔特元器件型号供参考。

5962-8688202XA - Precision 10V Reference

LH0070 - Precision 10V Reference - Linear Technology（凌力尔特）

功能描述

The LT1031 is a precision 10V reference with ultralow drift and noise, extremely good long term stability, and almost total immunity to input voltage variations. The reference output will both source and sink up to 10mA and can be used as a shunt regulator (two terminal Zener) with the same precision characteristics as the three terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis.

The LT1031 reference is based on a buried Zener diode structure which eliminates noise and stability problems associated with surface breakdown devices. Further, a subsurface Zener exhibits better temperature drift and time stability than even the best band-gap references.

Unique circuit design makes the LT1031 the first three terminal IC reference to offer ultralow drift without the use of high power on-chip heaters. Output voltage is pretrimmed to 0.05% accuracy.

The LT1031 can be used as a plug-in replacement for the AD581 and LH0070*, with improved electrical and thermal performance.

特点

Pin Compatible with LH0070 and AD581*

Ultralow Drift—5ppm/°C Max Slope

Trimmed Output Voltage

Operates in Series or Shunt Mode

Output Sinks and Sources in Series Mode

Very Low Noise < 1ppmP-P 0.1Hz to 10Hz

> 100dB Ripple Rejection

Minimum Input Voltage of 11V

应用

A-to-D and D-to-A Converters
